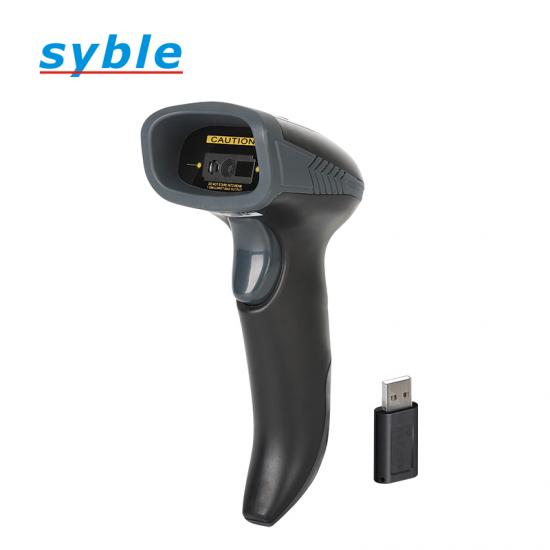

Máy quét mã vạch Syble XB-6288RB [2D Không Dây - Model 2025]

Specification

Performance Parameters

Light Sources

617nm LED Aimer,White LED

Supported Symbologies

1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar,

Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar,

GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey,

Matrix 2 of 5.

2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micor QR, Micor PDF417, Hanxin Code.

Resolution

640*480

Scan Method

Manual/Contnuous/Automatic inductive scanning

Scan Angle

Yaw 65°,Rotation 360°,Pitch 55°

Precision

≥5mil

Contrast

20%

Depth of scan field

EAN13 50-200mm(13mil);

QR 25-240mm(20mil);

PDF417 30-130mm(6.67mil)

Error Rate

Less than 1/5million

Interface

USB-HID

Wireless Communication

Pairing dedicated receiver: 2.4G communication

Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0

Transmission Distance

30-50M (Open yard)

Storage Mode

Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode,

storage capacity is 512000 characters.

Pairing Mode

One to One: One Scanning Gun Pairs One Receiver,

One scanner paired with a Bluetooth mobile device.

Physical  Parameters

Dimensions

79.7mm*69mm*155mm

Weight

223.9g

Material

ABS+PC

Cable Length

1.2M

Environmental Parameters

Operating Temperature

-20℃ ~50℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95% RH（Non-condensing）

Ambient lighting

0~100000LUX

Drop/Shock Resistance

Withstands multiple times 3 meters drops to concrete

lectrical Parameters

Voltage

DC5V±5%

Operating Current

when not scanning code ≥26mA; when scanning code ≥280mA

Standby Current

0mA(Standby is to cut off battery power)

Charging Mode

Contact the charging

Battery Working Time

7h

Charging Time

5h

Lithium battery

2200mA

Charging Model

Square USB charging cable, plug straight charge
